產品特性
- 開關迴路: 1NO1NC

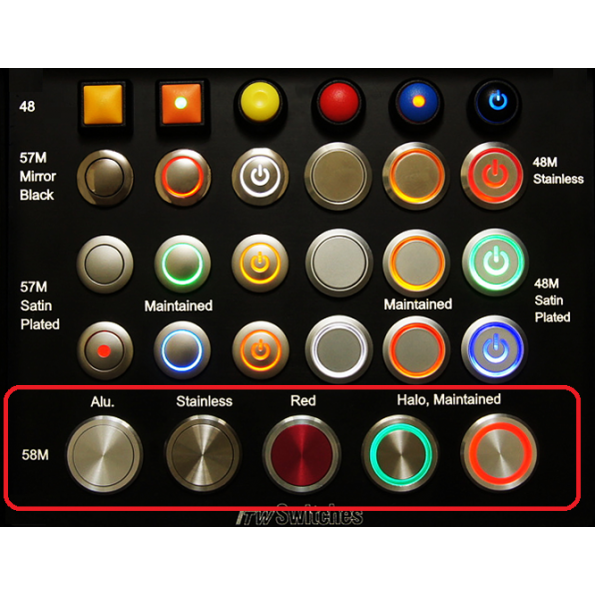

- 復歸式 / 自鎖式 開關動作
- 不銹鋼 / 鋁合金外殼
- 天使眼背光樣式或不帶燈
- 10.1Amp 高電流負載
- 防水等級 IP67
- 符合 RoHS法規
- 提供紅色按鍵
產品應用
- 工業控制面板
- 運輸
- 斷路器
- 飛機承包商
- 工業機械
Mechanical / Electriical Characteristics
- Circuit: SPDT-DB
- Button Travel (nominal): 2.3mm (0.09")
- Operating Force (nominal): 5N / 520 grams
- Contact Bounce (nominal): 1 millisecond
- Panel Thickness: 0.5 ~ 4.5mm (0.020" ~ 0.177")
- Temperature Index: -40°C to + 85°C
- Torque (maximum): 1.2 Nm (10 inch pounds)
- LED Operating Temperature: -25°C to + 185°C
- Current Ratings (resistive):
10A @ 125/250 VAC (res)
10A @ 28VDC (ind) - Dielectric Strength: 1000V AC
- Insulation Resistance: 1 GΩ
- Contact Resistance: 50 mΩ maximum (initial)
